Hello everyone,
I need some help, as I am unable to proceed when starting a VM via the OpenNebula web interface (23M) due to the following error message.
I do not have access to the shell or CLI, but can only use the functions within the web interface.
When starting the VM, this error appears in the log:
Tue Oct 7 15:23:05 2025 [Z0][VM][I]: New state is ACTIVE
Tue Oct 7 15:23:05 2025 [Z0][VM][I]: New LCM state is PROLOG
Tue Oct 7 15:23:08 2025 [Z0][VM][I]: New LCM state is BOOT
Tue Oct 7 15:23:09 2025 [Z0][VMM][I]: Generating deployment file: /var/lib/one/vms/2071/deployment.0
Tue Oct 7 15:23:11 2025 [Z0][VMM][E]: DEPLOY: Could not create domain from /var/lib/one//datastores/103/2071/deployment.0
Tue Oct 7 15:23:11 2025 [Z0][VM][I]: New LCM state is BOOT_FAILURE
The VM then switches to BOOT_FAILURE status and does not start. I have tried different templates (including with other images), but the error remains the same.
My environment:
Platform: 23M (OpenNebula web interface)
Access: Only via web GUI, no terminal/SSH access
Hypervisor: KVM
Storage: Ceph
Operating system image: Windows Server 2019
settings:
User template
ERROR = "Tue Oct 7 15:23:11 2025: DEPLOY: Could not create domain from /var/lib/one//datastores/103/2071/deployment.0"
HOT_RESIZE = [
CPU_HOT_ADD_ENABLED = "NO",
MEMORY_HOT_ADD_ENABLED = "NO" ]
HYPERVISOR = "kvm"
INPUTS_ORDER = ""
LOGO = "images/logos/windows8.png"
MEMORY_UNIT_COST = "MB"
SCHED_DS_REQUIREMENTS = "ID=\"103\""
Template
AUTOMATIC_DS_REQUIREMENTS = "(\"CLUSTERS/ID\" @> 0)"
AUTOMATIC_NIC_REQUIREMENTS = "(\"CLUSTERS/ID\" @> 0)"
AUTOMATIC_REQUIREMENTS = "(CLUSTER_ID = 0) & !(PUBLIC_CLOUD = YES) & !(PIN_POLICY = PINNED)"
CONTEXT = [
DISK_ID = "3",
ETH0_CONTEXT_FORCE_IPV4 = "",
ETH0_DNS = "212.83.32.201 212.83.33.2",
ETH0_EXTERNAL = "",
ETH0_GATEWAY = "62.113.197.1",
ETH0_GATEWAY6 = "2a00:f48:2000:101f:62:113:197:1",
ETH0_IP = "62.113.197.3",
ETH0_IP6 = "2a00:f48:2000:101f:62:113:197:3",
ETH0_IP6_PREFIX_LENGTH = "120",
ETH0_IP6_ULA = "",
ETH0_MAC = "02:00:3e:71:c5:03",
ETH0_MASK = "255.255.255.0",
ETH0_METRIC = "",
ETH0_METRIC6 = "",
ETH0_MTU = "",
ETH0_NETWORK = "62.113.197.0",
ETH0_SEARCH_DOMAIN = "",
ETH0_VLAN_ID = "56",
ETH0_VROUTER_IP = "",
ETH0_VROUTER_IP6 = "",
ETH0_VROUTER_MANAGEMENT = "",
NETWORK = "YES",
TARGET = "hdc" ]
CPU = "4"
CPU_MODEL = [
MODEL = "host-passthrough" ]
DISK = [
ALLOW_ORPHANS = "YES",
CEPH_HOST = "mon01 mon02 mon03",
CEPH_SECRET = "74ba8d4d-526c-4b50-a399-505da021458a",
CEPH_USER = "libvirt",
CLONE = "NO",
CLONE_TARGET = "SYSTEM",
CLUSTER_ID = "0",
DATASTORE = "IMAGE",
DATASTORE_ID = "102",
DEV_PREFIX = "hd",
DISK_ID = "0",
DISK_SNAPSHOT_TOTAL_SIZE = "0",
DISK_TYPE = "RBD",
DRIVER = "raw",
FORMAT = "raw",
IMAGE = "Windows_2019_CDROM",
IMAGE_ID = "835",
IMAGE_STATE = "2",
IMAGE_UNAME = "16116-admin",
LN_TARGET = "NONE",
ORDER = "1",
ORIGINAL_SIZE = "5447",
POOL_NAME = "one",
READONLY = "YES",
SAVE = "NO",
SIZE = "5447",
SOURCE = "one/one-835",
TARGET = "hda",
TM_MAD = "ceph",
TYPE = "RBD_CDROM" ]
DISK = [
ALLOW_ORPHANS = "mixed",
CEPH_HOST = "mon01 mon02 mon03",
CEPH_SECRET = "74ba8d4d-526c-4b50-a399-505da021458a",
CEPH_USER = "libvirt",
CLUSTER_ID = "0",
DATASTORE = "SYSTEM",
DATASTORE_ID = "103",
DEV_PREFIX = "sd",
DISK_ID = "1",
DISK_TYPE = "RBD",
DRIVER = "raw",
FORMAT = "raw",
ORDER = "2",
POOL_NAME = "one",
SIZE = "102400",
TARGET = "sda",
TM_MAD = "ceph",
TYPE = "fs" ]
DISK = [
ALLOW_ORPHANS = "YES",
CEPH_HOST = "mon01 mon02 mon03",
CEPH_SECRET = "74ba8d4d-526c-4b50-a399-505da021458a",
CEPH_USER = "libvirt",
CLONE = "NO",
CLONE_TARGET = "SYSTEM",
CLUSTER_ID = "0",
DATASTORE = "IMAGE",
DATASTORE_ID = "102",
DEV_PREFIX = "hd",
DISK_ID = "2",
DISK_SNAPSHOT_TOTAL_SIZE = "0",
DISK_TYPE = "RBD",
DRIVER = "raw",
FORMAT = "raw",
IMAGE = "Windows VirtIO Drivers - v0.1.240",
IMAGE_ID = "840",
IMAGE_STATE = "2",
IMAGE_UNAME = "16116-admin",
LN_TARGET = "NONE",
ORIGINAL_SIZE = "599",
POOL_NAME = "one",
READONLY = "YES",
SAVE = "NO",
SIZE = "599",
SOURCE = "one/one-840",
TARGET = "hdb",
TM_MAD = "ceph",
TYPE = "RBD_CDROM" ]
FEATURES = [
ACPI = "yes",
APIC = "yes",
HYPERV = "yes",
PAE = "yes" ]
GRAPHICS = [
KEYMAP = "de-de",
LISTEN = "0.0.0.0",
PORT = "7971",
TYPE = "VNC" ]
MEMORY = "8192"
NIC = [
AR_ID = "0",
BRIDGE = "onebr.56",
BRIDGE_TYPE = "linux",
CLUSTER_ID = "0",
FILTER_IP_SPOOFING = "YES",
FILTER_MAC_SPOOFING = "YES",
GATEWAY = "62.113.197.1",
INBOUND_AVG_BW = "100000",
INBOUND_PEAK_BW = "125000",
IP = "62.113.197.3",
IP6 = "2a00:f48:2000:101f:62:113:197:3",
MAC = "02:00:3e:71:c5:03",
NAME = "NIC0",
NETWORK = "Public-62-113-197--24",
NETWORK_ID = "6",
NIC_ID = "0",
OUTBOUND_AVG_BW = "100000",
OUTBOUND_PEAK_BW = "125000",
PHYDEV = "bond1",
SECURITY_GROUPS = "0",
TARGET = "one-2071-0",
VLAN_ID = "56",
VN_MAD = "802.1Q" ]
OS = [
ARCH = "x86_64",
BOOT = "disk0,disk1",
MACHINE = "pc",
ROOT = "disk1",
UUID = "7c270f8e-4307-4260-af35-3aab69b25fe3" ]
SECURITY_GROUP_RULE = [
PROTOCOL = "ALL",
RULE_TYPE = "OUTBOUND",
SECURITY_GROUP_ID = "0",
SECURITY_GROUP_NAME = "default" ]
SECURITY_GROUP_RULE = [
PROTOCOL = "ALL",
RULE_TYPE = "INBOUND",
SECURITY_GROUP_ID = "0",
SECURITY_GROUP_NAME = "default" ]
TEMPLATE_ID = "655"
TM_MAD_SYSTEM = "ceph"
VCPU = "4"
VMID = "2071"
Questions:
What exactly does the error “DEPLOY: Could not create domain from deployment.0” mean in this context (KVM + Ceph)?
Can this error be fixed by making adjustments to the template (within the web interface)?
Could this be due to incorrect Ceph/disk attributes or the Windows image itself?
I would be very grateful if someone could help me—unfortunately, I’m completely stuck here.
Best regards,
Deniz

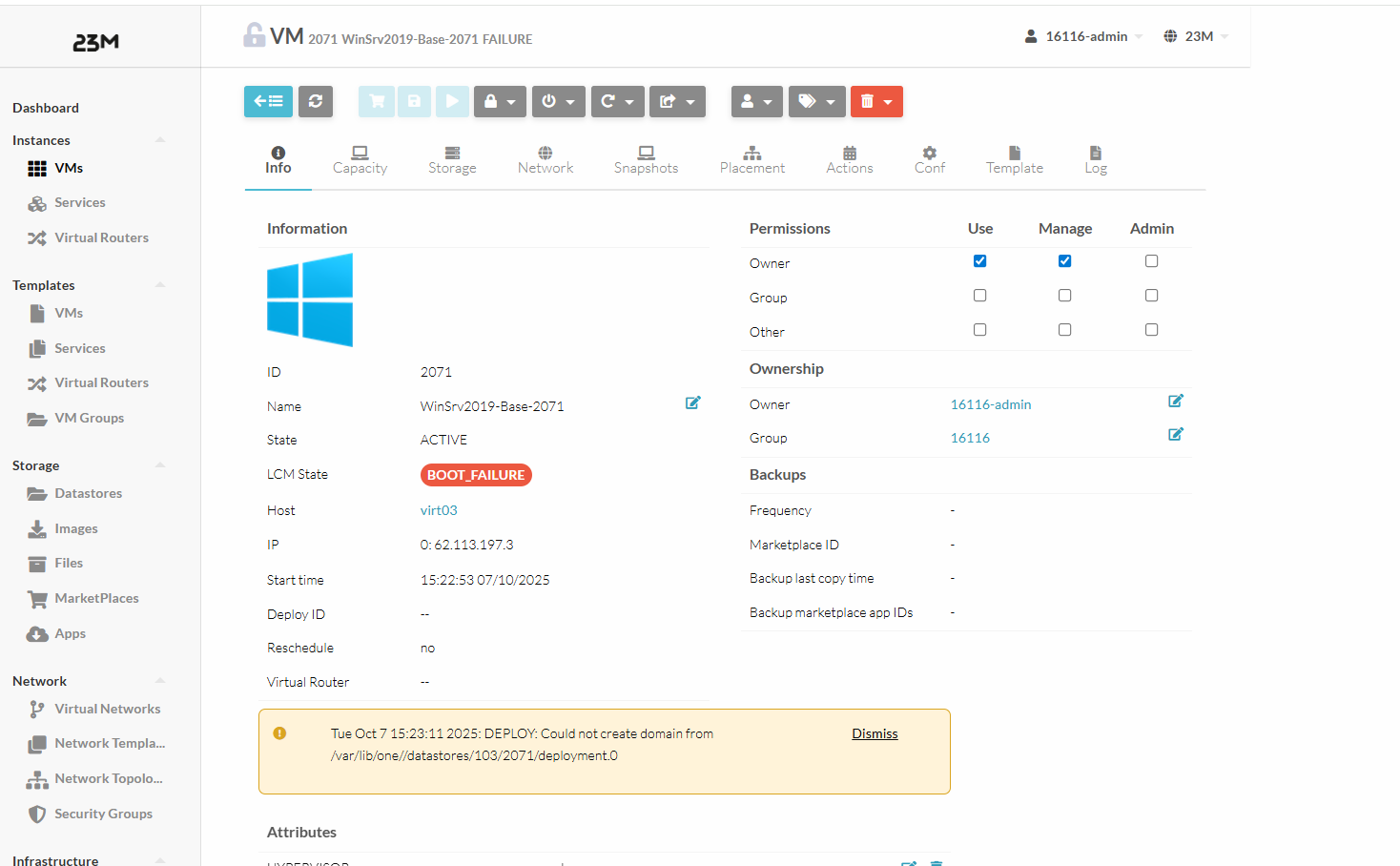

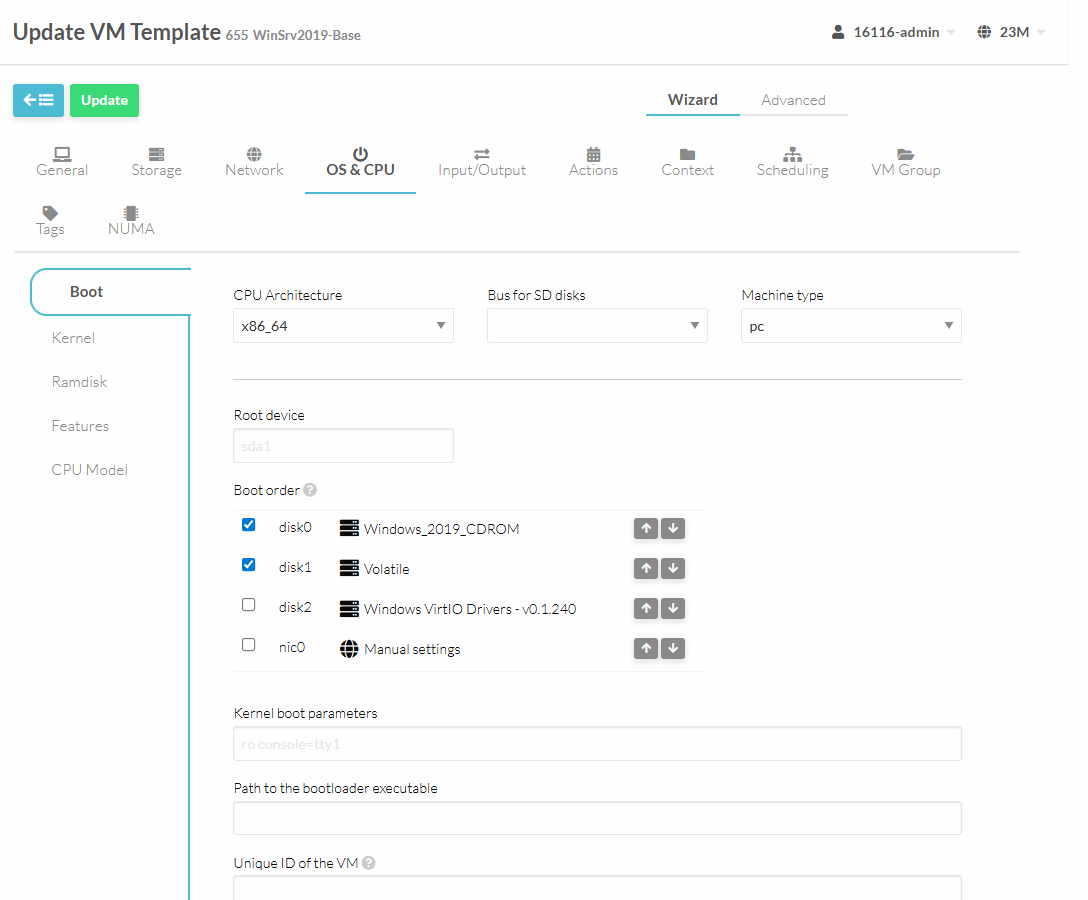

Screenshots:
Datastores:
Virtual Networks:
